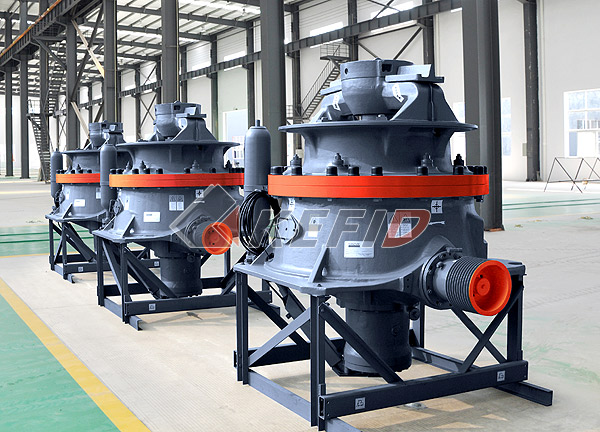

HC cone crusher is the new advanced cone crusher and win global stone crushing industry customers’ favor. It adopts advanced manufacturing technology and other latest researching results in crushing, hydraulic, computer control technology. HP cone crusher is widely used in the work of medium-size crushing, fine crushing and super fine crushing that can meet the toughest working conditions and has the characteristics of meeting the requirements of different types and hardness stones.
Working Principle:
1.Top and bottom body are alloy steel, which make the body more durable and robust through computer FEM finite element analysis design. Adopts alloy forged mainshaft, and can bear overweight crushing force.
2.The main axis, eccentric, eccentric bushing combined together. By rotating the eccentric can easily set multiple eccentricities, which can meet requirement of different minerals and mining.
3.Spiral bevel gear surface transmission makes it torque, efficiency.
According to the parietal broken principle and laminated material wear characteristic, the curve crushing chamber can ensure the large production, high quality, and low wear and tear cost of the crusher.
4.Lubrication system and hydraulic system adopt modular design, and they run independently. They chain with the host, enabling the protection of the oil temperature, flow, pressure, power, and abnormal power supply.
5.Self-operation system can achieve overload protection, over-iron protection and automatic compensation of liner wear during crushing operations. Feeding through crowded warehouse can maximize the effect of the crusher.
Technical Parameter :
Model | Main shaft speed(rpm) | Eccentric distance(mm) | Motor power(kw) | Weight(kg) |
HC100S | 360 | 16-25 | 90 | 7100 |
HC200S | 340 | 16-30 | 150 | 13200 |
HC300S | 285 | 20-36 | 220 | 19500 |
HC100 | 395 | 13-28 | 90 | 5400 |
HC200 | 360 | 16-36 | 150 | 9400 |
HC300 | 320 | 16-36 | 250 | 14500 |
HC400 | 290 | 18-50 | 315 | 24200 |
Model | Chamber Type |
Max.feeding size(mm) |
Capacityt/h:Capacity,Metric tons per hour | |||||||||||||
CSS | ||||||||||||||||
16 | 19 | 22 | 25 | 29 | 32 | 35 | 38 | 41 | 44 | 48 | 51 | 54 | ||||
HC100S | EC | 240 | 80 | 90 | 120 | 160 | 175 | 150 | 130 | |||||||
C | 200 | 68 | 75 | 102 | 133 | 117 | 102 | |||||||||
HC200S | EC | 360 | 122 | 131 | 180 | 243 | 258 | 325 | 343 | 360 | 320 | 269 | 225 | |||
C | 300 | 104 | 142 | 152 | 209 | 267 | 284 | 299 | 316 | 277 | 189 | |||||
25 | 29 | 32 | 35 | 38 | 41 | 44 | 48 | 51 | 54 | 57 | 60 | 64 | ||||
HC300S | EC | 450 | 248 | 264 | 350 | 371 | 468 | 493 | 630 | 550 | 479 | |||||
C | 400 | 215 | 295 | 314 | 400 | 423 | 536 | 470 | 418 | 350 | ||||||
4 | 5 | 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 | ||||
HC100 | EC | 130 | 48 | 89 | 97 | 104 | 110 | 118 | 127 | 134 | 103 | |||||
C | 90 | 56 | 93 | 101 | 108 | 116 | 124 | 110 | 74 | |||||||
M | 64 | 46 | 78 | 84 | 80 | 62 | ||||||||||
MF | 48 | 38 | 70 | 74 | 71 | 56 | ||||||||||
F | 38 | 35 | 51 | 52 | 56 | 60 | 50 | 40 | ||||||||
EF available | 6 | 8 | 10 | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 | 38 | 41 | |||
HC200 | EC | 190 | 113 | 157 | 169 | 179 | 191 | 207 | 218 | 230 | 218 | 174 | ||||
C | 145 | 138 | 149 | 160 | 170 | 182 | 196 | 207 | 197 | 156 | 120 | |||||
MC | 115 | 60 | 147 | 158 | 170 | 182 | 193 | 168 | 152 | 123 | ||||||
M | 90 | 88 | 138 | 149 | 160 | 170 | 161 | 137 | 109 | |||||||
MF | 65 | 64 | 111 | 121 | 130 | 132 | 120 | 97 | ||||||||
F | 50 | 82 | 87 | 92 | 101 | 108 | 110 | 100 | 81 | |||||||
EF available | 10 | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 | 38 | 41 | 44 | 48 | |||
HC300 | EC | 210 | 210 | 290 | 309 | 329 | 355 | 374 | 395 | 415 | 434 | 403 | 320 | |||
C | 170 | 106 | 229 | 307 | 327 | 348 | 377 | 397 | 378 | 352 | 276 | 240 | ||||
MC | 140 | 128 | 275 | 296 | 316 | 336 | 363 | 344 | 322 | 254 | 221 | |||||
M | 105 | 196 | 292 | 313 | 334 | 356 | 314 | 295 | 233 | 204 | ||||||
MF | 80 | 120 | 238 | 257 | 276 | 295 | 314 | 277 | 260 | 206 | ||||||
F | 65 | 185 | 201 | 216 | 232 | 248 | 263 | 233 | 218 | 172 | ||||||
EF available | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 | 38 | 41 | 44 | 48 | 51 | |||
HC400 | EC | 300 | 186 | 355 | 458 | 487 | 526 | 574 | 605 | 635 | 665 | 695 | 663 | 536 | ||
C | 210 | 200 | 385 | 504 | 535 | 579 | 611 | 643 | 675 | 643 | 538 | 426 | 371 | |||
MC | 170 | 266 | 447 | 478 | 508 | 549 | 580 | 610 | 524 | 488 | 382 | 303 | ||||
M | 130 | 310 | 462 | 494 | 525 | 567 | 527 | 504 | 423 | 389 | ||||||
MF | 100 | 202 | 387 | 416 | 444 | 472 | 510 | 473 | 408 | 381 | ||||||
F | 75 | 319 | 344 | 370 | 395 | 420 | 454 | 421 | 363 | 339 | ||||||
EF | 55 | 295 | 318 | 313 | 304 |
