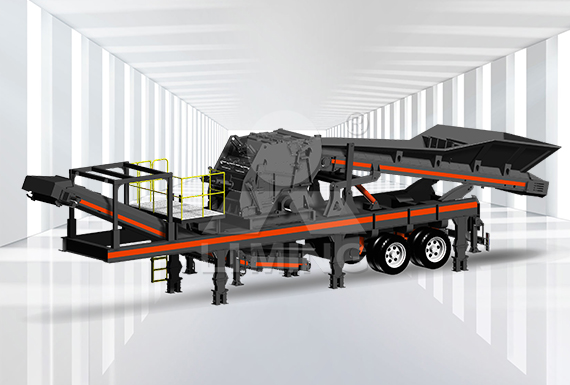

NK series mobile crusher is new generation of mobile crushing station equipped with intelligent control system. It makes all components completely airborne, so there is no need to install machine and pour foundation. It can be put into use as soon as it arrives at the production site, which is very flexible.
Applications: Metal and non-metallic mines, cement, aggregate, metallurgy, construction waste
Learn More About Liming® NK series mobile crusher
1.Various working modes
NK mobile crushing station can be divided into mobile primary jaw crusher, mobile medium crusher and mobile vibrating screen. NK mobile station can be assembled according to the needs of customers, which has stronger applicability and wider application scope.
2.Modular design
By changing the main machine to quickly assemble the required mobile crushing station. The investment cost can be reduced and the preparation cycle can be shortened. It can satisfy customers’ diversified needs.
3.Intelligent operation
NK mobile crushing station adopts integrated intelligent automatic control system, which is more convenient to operate and more precise to adjust. It is easy to control the whole crushing process.
4.Customized main machine
The main machine equipped on the NK mobile crushing station is specially designed for mobile crusher, which takes advantages of reliable performance, large capacity, high energy utilization and easy maintenance.
5.Go into operation quickly
Adjustable fixed leg design can achieve no foundation installation. Airborne components do not need to be disassembled, which eliminates on-site installation process. There is no external belt conveyor, and the production site doesn’t need crane and belt conveyor, so mobile crusher can be quickly installed and debugged.
6.Maintenance friendly
Vibrating screen adopts thin oil self-lubrication mode and it can be replaced lubricating oil once every 8 months, which can save lubricating oil and labor costs.
Specifications – Technical Data
Mobile Primary Jaw Crusher
Model | NK100E Mobile Crusher | NK1213C Mobile Crusher |
Power | 138.5kW | 228.5 kW |
Weight | 35T | 31T |
Capacity | 150-350t/h | 150-300t/h |
Feeding hopper | ||
Volume | 6m³ | 6m³ |
Width | 2500mm | 2500mm |
Vibrating screen | ||
Model | FK0936 | FK0936 |
Loading width | 960mm | 960mm |
Loading length | 3600mm | 3600mm |
Crusher | ||
Model | PE3040 Jaw Crusher | CI5X1213 Impact Crusher |
Motor power | 110kW | 200kW |
Feeding depth | 760mm | – |
Maximum feeding size | 680mm | 550mm |
Discharge outlet | 70-150 | >30mm |
Discharge belt | ||
Belt conveyor width | 1000mm | 1000mm |
Discharge Height | 3639mm | 3639mm |
Mobile Medium Crusher
Model | NK300H Mobile Crusher (No pre-screening) | NK300H Mobile Crusher (With return screening) | NK1213 Mobile Crusher (No pre-screening) | NK1213 Mobile Crusher (With return screening) |
Power | 283 kW | 323.5 kW | 231.5 kW | 272 kW |
Weight | 34T | 42T | 29T | 37T |
Capacity | 110-440t/h | 110-440t/h | 150-300 t/h | 150-300 t/h |
Main machine | ||||
Model | HPT300 Cone Crusher | HPT300 Cone Crusher | CI5X1213 Impact Crusher | CI5X1213 Impact Crusher |
Maximum feeding size | 220mm | 220mm | 300mm | 300mm |
Power | 220kW | 220kW | 200 kW | 200 kW |
Vibrating screen | ||||
Model | – | SKX1536 | – | SKX1536 |
Power | – | 15kW | – | 15kW |
Speed | – | 1000r/min | – | 1000r/min |
Vibration intensity | – | 4.5G | – | 4.5G |
Screen dimension (W*L) | – | 1500X3600mm | – | 1500X3600mm |
Belt conveyor | ||||
Feeding belt conveyor width | 1000mm | 1000mm | 1000mm | 1000mm |
Host discharging belt conveyor width | 1000mm | 1000mm | 1000mm | 1000mm |
Screening transporter belt width | – | 500mm | – | 500mm |
Return belt conveyor width | – | 500mm | – | 500mm |
Discharging belt conveyor width | – | 1200mm | – | 1200mm |
Discharging belt conveyor height | 3334mm | 3124mm | 3334mm | 3124mm |
Mobile Vibrating Screen
SKX1860 Vibrating Screen (2 layers / 3 layers) | |
Power | 72/79.5 kW |
Weight | 27/31T |
Capacity | 70-600t/h |
Vibrating screen | |
Power | 22kW |
Screen dimension (W*L) | 1800X6000mm |
Speed | 1000r/min |
Vibration intensity | 4.5G |
Belt conveyor | |
Feeding belt conveyor width | 1000mm |
Side-out belt conveyor width | 650mm |
Discharging belt conveyor width | 1200mm |
