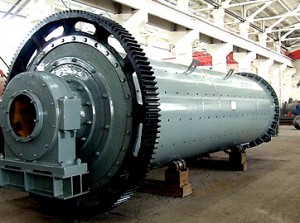

Ball Mills is the most used machines, both for mineral flotation plant and fine grinding flowchart. In industrial mineral powder making process, ball mill is key equipment which repulverises the material after it is crushed. Ball Mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. Usually the output size is 0.075-0.89 mm and the capacity can up to 35 tph, capacity depends on the size of fineness.
APPLICATIONS:
cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.
PERFORMANCE:
Advantages of the ball mills are lower investment, energy saving, structure novelty, easy and safe to operate, stable and reliable performance, etc. It is suitable for milling of general and special ore materials.
SPECIFICATIONS:
Mm to inch conversion: 25.4millimeters=1 inch The humidity and hardness of raw material will affect the fineness and capacity.
Model | Speed of bucket (r/min) | Weight of ball (t) | Size of feed opening (mm) | size of outputting feed (mm) | Production (t/h) | Power (kW) | Weight (t) |
Φ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
Φ900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
Φ1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
Φ1200×3000 | 32 | 5 | ≤25 | 0.075-0.4 | 1.6-5 | 45 | 12.8 |
Φ1200×4500 | 32 | 7 | ≤25 | 0.075-0.4 | 1.6-5.8 | 55 | 13.8 |
Φ1500×3000 | 27 | 8 | ≤25 | 0.075-0.4 | 2-5 | 90 | 17 |
Φ1500×4500 | 27 | 14 | ≤25 | 0.075-0.4 | 3-6 | 110 | 21 |
Φ1500×5700 | 27 | 15 | ≤25 | 0.075-0.4 | 3.5-6 | 132 | 24.7 |
Φ1830×3000 | 24 | 11 | ≤25 | 0.075-0.4 | 4-10 | 180 | 28 |
Φ1830×6400 | 24 | 23 | ≤25 | 0.075-0.4 | 6.5-15 | 210 | 34 |
Φ1830×7000 | 24 | 25 | ≤25 | 0.075-0.4 | 7.5-17 | 245 | 36 |
Φ2200×5500 | 21 | 30 | ≤25 | 0.075-0.4 | 10-22 | 370 | 48.5 |
Φ2200×6500 | 21 | 30 | ≤25 | 0.075-0.4 | 14-26 | 280 | 52.8 |
Φ2200×7500 | 21 | 33 | ≤25 | 0.075-0.4 | 16-29 | 380 | 56 |
Φ2200×9500 | 21 | 38 | ≤25 | 0.074-0.4 | 18-35 | 475 | 62 |
Note: Any change of Ball Mill technical data shall not be advised additionally.
